ï¿½Modelï¿½ï¿½

CL-FOSï¿½

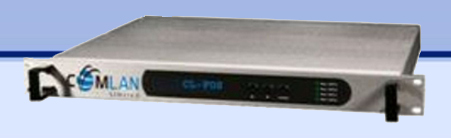

	CL-FOS, Automatic and Manual optical redundant failover switch 1×2, 2×1 or 2×2

Fiber Optic Automatic or Manual Optical Switch

The F-OS provides two diverse routes for the same link, on detection of a failure.

Comlan CL-FOS Optical switch switches between a fiber optics signals if one of them fails .

In Auto mode switch constantly monitors inputs optical power and when optical power drops on one of the input , it automatly switches to the second one . It is mainly used for applications that demands high reliability operation to protect the optic path, for example, CATV system head-end Optical transmitter, and self-healing circle network.

In manual mode user can switch optical signals between the sources or distribute a optical signals to 2 different destinations / receivers .

• Create an optical path between any fiber input/output in milliseconds

• Monitor the health of fiber networks remotely

• Reconfigure data streams automatically manualy and remotely

For Sales Inquiries please contact us today: Contact Us!

Features

- Automatic or manual switch setting at front panel.
- The optical power through displayed at front panel.
- very low insertion loss, Typical ≤0.6dB, Maximum ≤ 1.0dB
- Standard RS232 communication interface
- Integrate SNMP network management function.
- The switch mode is automatic or manual.
- Switch reference level can be set through front panel or Internet.
- 19" standard casing
- Independent of Data Rate, and any Wavelength
- Simple, Plug-and-play Installation
- Front Panel LED and Remote Alarm

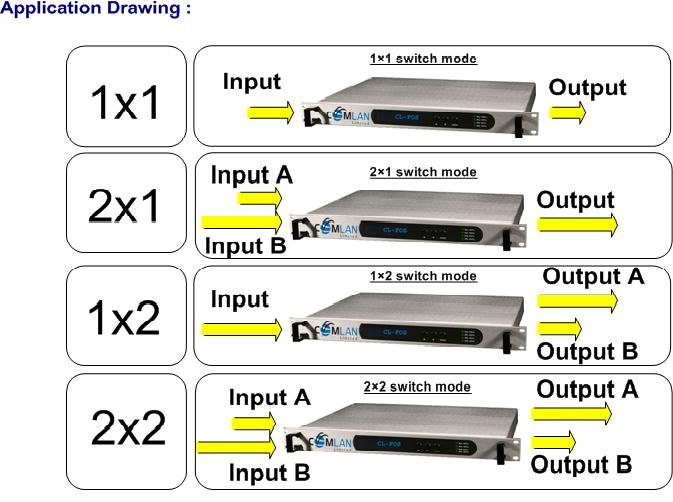

Example Aplication
