ï¿½Modelï¿½ï¿½

CL-1250Vï¿½

	CL-1250V, Fiberoptic Gigabit Ethernet Video/Audio Multiplexer

Audio Video Multiplexer with Built In Gigabit Ethernet Transceiver

CL-1250V combines a Gigabit Ethernet transceiver with Audi/Video Multiplexer. The Video/Audio multiplexer may be configured for one baseband video and 2 channels of audio. Up to 4 audio channels may be ordered. The CL-1250V can be configured to transmit over one or two fibre strands. It has easy-to-read diagnostic LED's for continuous status reports on network speed, duplex media access control connection, and network traffic. The CL-1250V uses standard SC or SC/APC fibre optic connectors and is IEEE 802.3z 1000BASE-FX compliant and operates with all devices that adhere to this standard.

For Sales Inquiries please contact us today: Contact Us!

Features

- 1000 Mbps Full Duplex Gigabit Ethernet Transceiver
- 1 x 1000BASE-FX LAN Fiber Port (multimode or single-mode optics)
- 1 x 1000BASE-FX WAN Fiber Port (singlemode optics 1310, 1550, CWDM, DWDM)
- 1 or 2 Video Ports configured for baseband video and stereo audio
- Video ports support composite video/audio signals
- 4 x Audio channels optional 1 or 2 Fiber Strand Transmission
- Provide full wire-rate 2000 Mbps Duplex Transmission for greater network performance
- Plug-n-Play Gigabit Ethernet Mode Converter or Single-mode Repeater, IEEE 802.3z compliant
- Bidirectional Transmission available

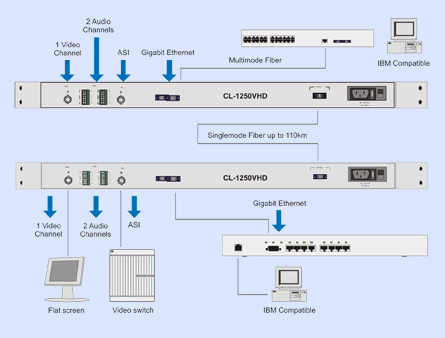

Example Aplication
