	CL-5000, CWDM System Chassis

CL-5000 System Chasis is a Card Cage combined with built-in CWDM optical trunking multiplexerthat supports up to 8 CWDM wavelengths of Simplex or Duplex optical signals over one strand of the fiber. The CL-5000 employs separate optical channels for each optical link, which enhances network security by completely isolating the each channel. The CL-5000 houses modules, which access the internal CWDM fiber system.
The CL-5000 has easy-to-read diagnostic LED's for the LAN and WAN port's optical link status. The CL-5000 has an SNMP option for remote monitoring. The CL-5000 uses standard SC or SC/APC fiber optic connectors and is IEEE 802.3z 1000BASE-FX compliant and operates with all devices that adhere to this standard.

Features

- 2 to 8 Full Duplex signals on 1 Fiber
- Hot Swap Modules

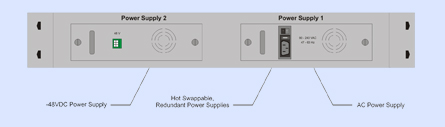

- Hot Swap, Load Sharing Power Supplies for 110V AC,
- 240V AC or 48V DC
- SNMP option
- 20 to 110km Transmission Range (Model Selection)
- 1 or 2 Fiber Strand Transmission
- IEEE 802.3z compliant

Example Aplication

Model Selection

CL-5000-CWDM-2

CWDM Card Cage, 2 PortSimplex, 1310, 1510-1570nm, Single Fiber, SC/APC Connector

CL-5000-CWDM-4

CWDM Card Cage, 4 PortDuplex, 1310, 1470-1610nm, Single Fiber, SC/APC Connector

CL-5000-CWDM-8

CWDM Card Cage, 8 PortSimplex, 1470-161 Onm, Single Fiber, SC/APC Connector

CL-5000-CWDM-8

Specifications

Available Modules

- Gigabit Ethernet TX to LX
- Gigabit Ethernet SX to LX
- Dual Gigabit Ethernet SX to LX
- 30 Mbps - 2.7 Gigabit Programable Repeater
- IF Frequency Digitizer
- Video/Audio Multiplexer
- DVB-ASI: 1 Channel, 2 Channel
- DS1, DS3, OC3, E3
- Fast Ethernet

Standards

19" Rackmount Card Cage, 2U

Dimensions

17"x 10" x 3.50"

Environment

Operating temperature: 0°C to 50°C
Storage temperature: -20°C to 70°C
Operating humidity: 10% to 90% RH
Storage humidity: 5% to 90% RH

Input Power Requirements

Voltage: 110/240V Auto-sense Internal Power Optional Redundant, Load Sharing 48V DC Supplies

Network Media

High RJ-45 (Optional SNMP Monitoring Port)

Led Indicators

PS1 Power, PS2 Power
